14’-19’ Toyota Tundra 4x4 & 4x2 (Factory Suspension) Rear ASAM
14’-19’ Toyota Tundra 4x4 & 4x2 (1”- 2.5” Lift) Rear ASAM
Installation Instructions and Video will be available soon.

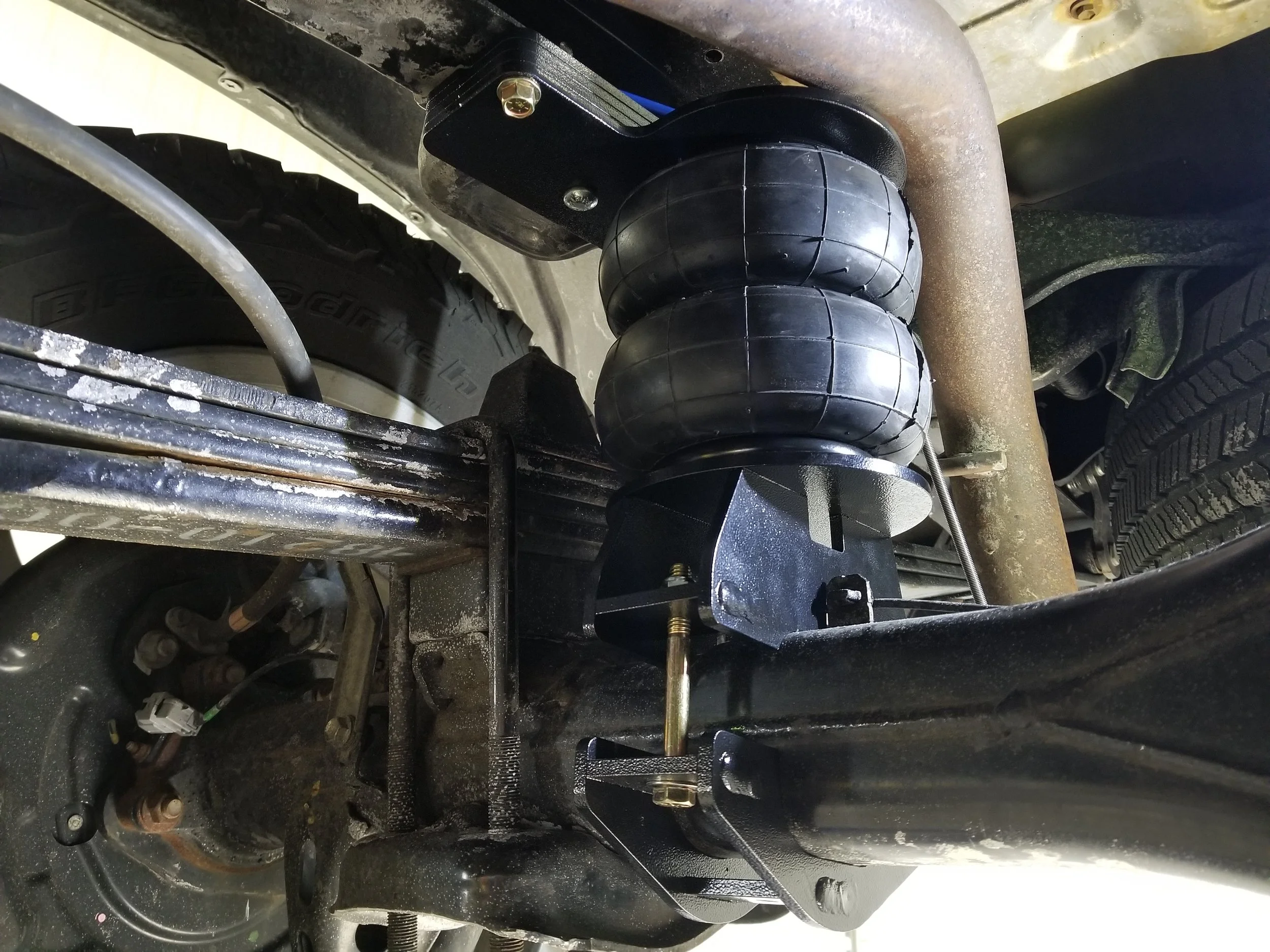

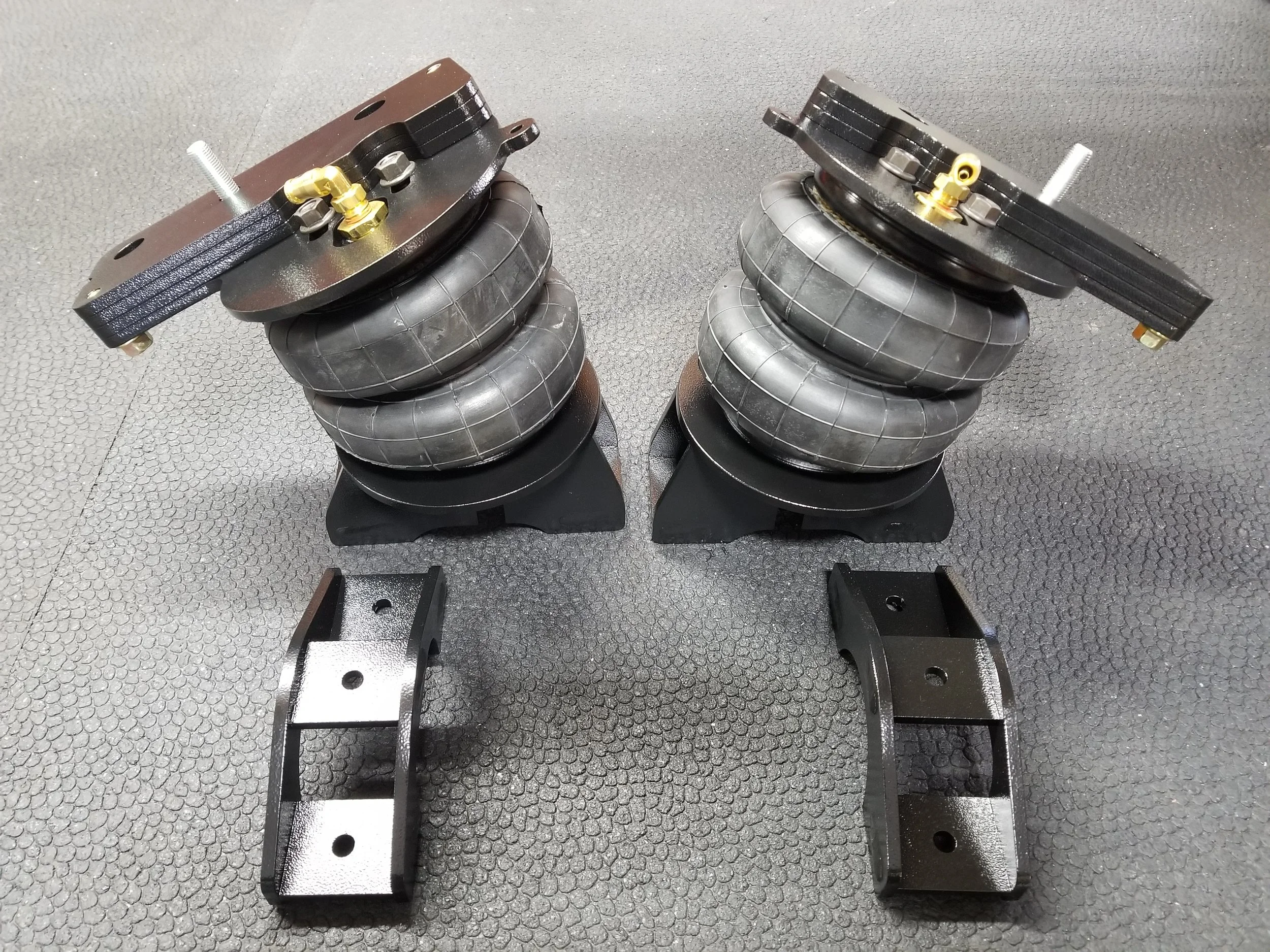

This kit is 100% bolt-in application that is very easy to install and will provide 4,160 lbs of vertical lift. All mounts, hardware, brass DOT push-to-connect fittings and single fill air lines are included.
This is a 2" taller air spring upgrade used for Factory Suspensions that have 1” to 2.5” coil spacers, leaf spring risers and/or longer shocks installed. If factory shocks are maintained, this upgrade is typically not required. This upgrade contains two air springs and and will arrive pre-assembled. THIS PRICE IS HONORED AT TIME OF KIT PURCHASE ONLY.
Due to the numerous products available for raising the rear suspension, please Contact Us before you order.
This is an install, set it and forget it system that will maintain set ride height automatically. The kit ships complete with 100% bolt-on mounts, 100% duty cycle Viair 350C compressor, custom TGE seamless aluminium 2 gallon air tank, Dual Haldex class 8 controlled response leveling valves, plug & play wiring harness, brass DOT push-to-connect fittings, hardware and air lines.
