19’ Chevy Silverado 1500 Custom Trail Boss Z71 (Courtesy of Markquart Motors)

19’-20’ Chevy/GMC 1500 4x2 or 4x4 (Factory Suspension) Rear ASAM

The ASAM works in tandem with the factory suspension to provide vertical lift controlled by you with air pressure. Any air source from a bike pump to an automatic air management system can be utilized. Please view our "AIR SOLUTIONS" page for additional information.

Since introduction, this rugged kit has provided numerous owners support and confidence while towing. Whatever you do with your truck, this kit will perform the task safely & effectively. Please review our "SAFETY" page.

Our design philosophy is to build them tough with quality components that perform without fail and stand behind every product 100%. Please view our "GENERAL INFO" page for additional information.

Please "CONTACT US" with any questions.

Air Spring Installation Video for 19'-20' Chevy & GMC 1500

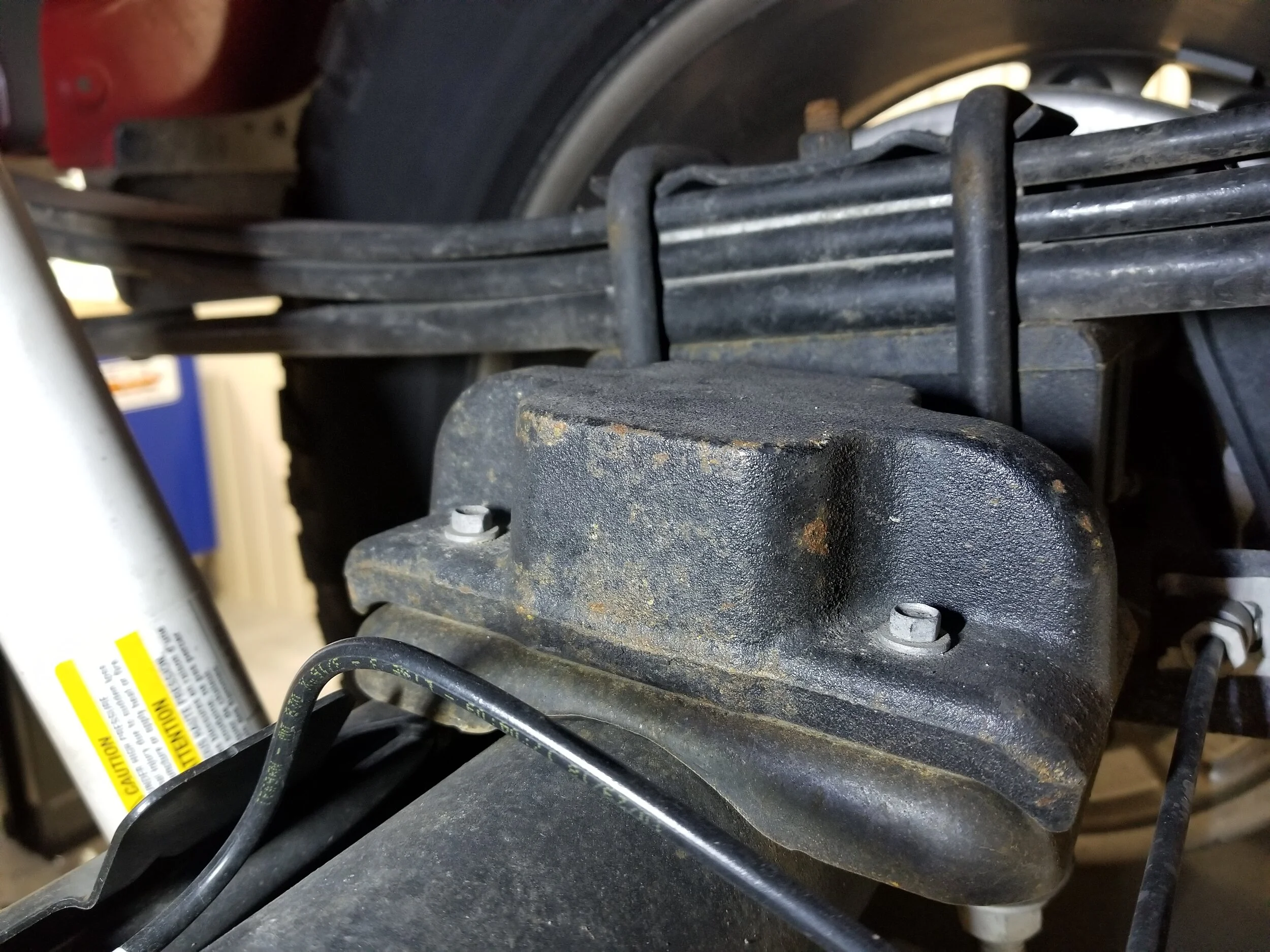

If your truck has these blocks bolted to the axle, the 2” air spring upgrade is required when ordering.

Shipping Notice.png

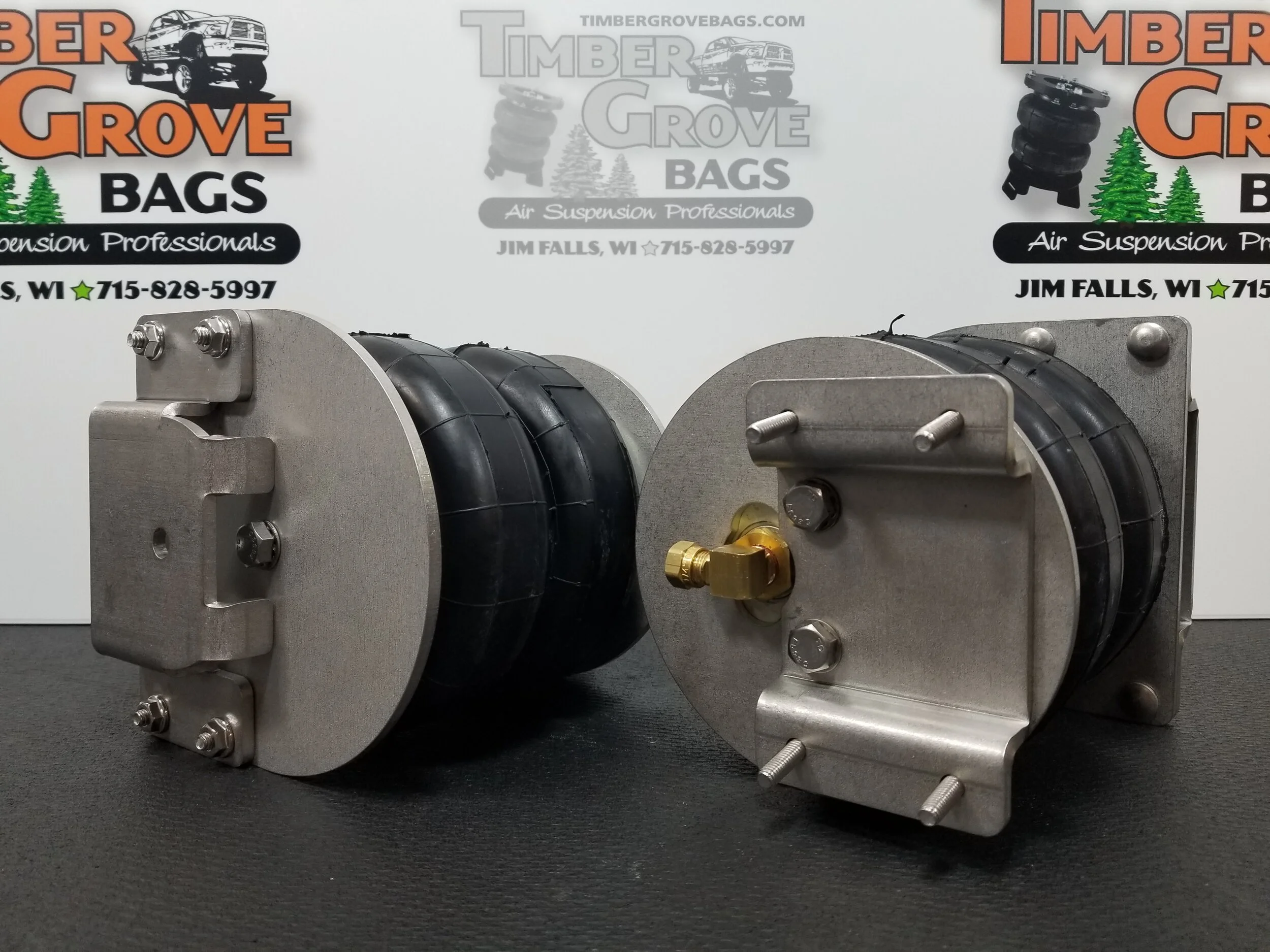

19'-20' Chevy / GMC 1500 (STAINLESS) Rear ASAM (SQ5130254)

New 100% bolt-in 304 stainless steel design for 4x4 or 4x2 models. No more peeling powder or rust. Kit includes stainless hardware, brass DOT compression fittings and single DOT air fill line. Air springs are rated at 5,000 lbs and max 550 PSI. Provision for lift kits is designed in with additional purchase of adjustable spacer kit. Please contact us for your application.

TRUCKS WITH FACTORY TRIM PACKAGES OF: Custom Trail Boss Z71, LT Trail Boss Z71 & AT4 need to purchase an additional 2” air spring upgrade to fit properly. Packages listed have a factory 2” lift installed.

Add To Cart
Chevy-GMC 1500 2" Air Spring Upgrade (SQ6013705)

This upgrade is for 19’-20’ (Factory Suspensions Only) Chevy-GMC 1500’s with Custom Trail Boss Z71, LT Trail Boss Z71 or AT4 packages. This upgrade contains two air springs and and will arrive pre-assembled. THIS PRICE IS HONORED AT TIME OF KIT PURCHASE ONLY.

Due to the numerous products available for raising the rear suspension, please Contact Us before you order.
